• The two-level embossment at the top flange provides increased stiffness
• The full-height joist flange captures the top chord of the joist to prevent rotation and eliminate the need for web stiffeners
• Minimum nailing targets moderate load demands, whereas maximum nailing allows higher loads
• Available for special order to accommodate sloped and/or skewed members
• Actual joist size: 1-1/2 in. x 14 in.
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

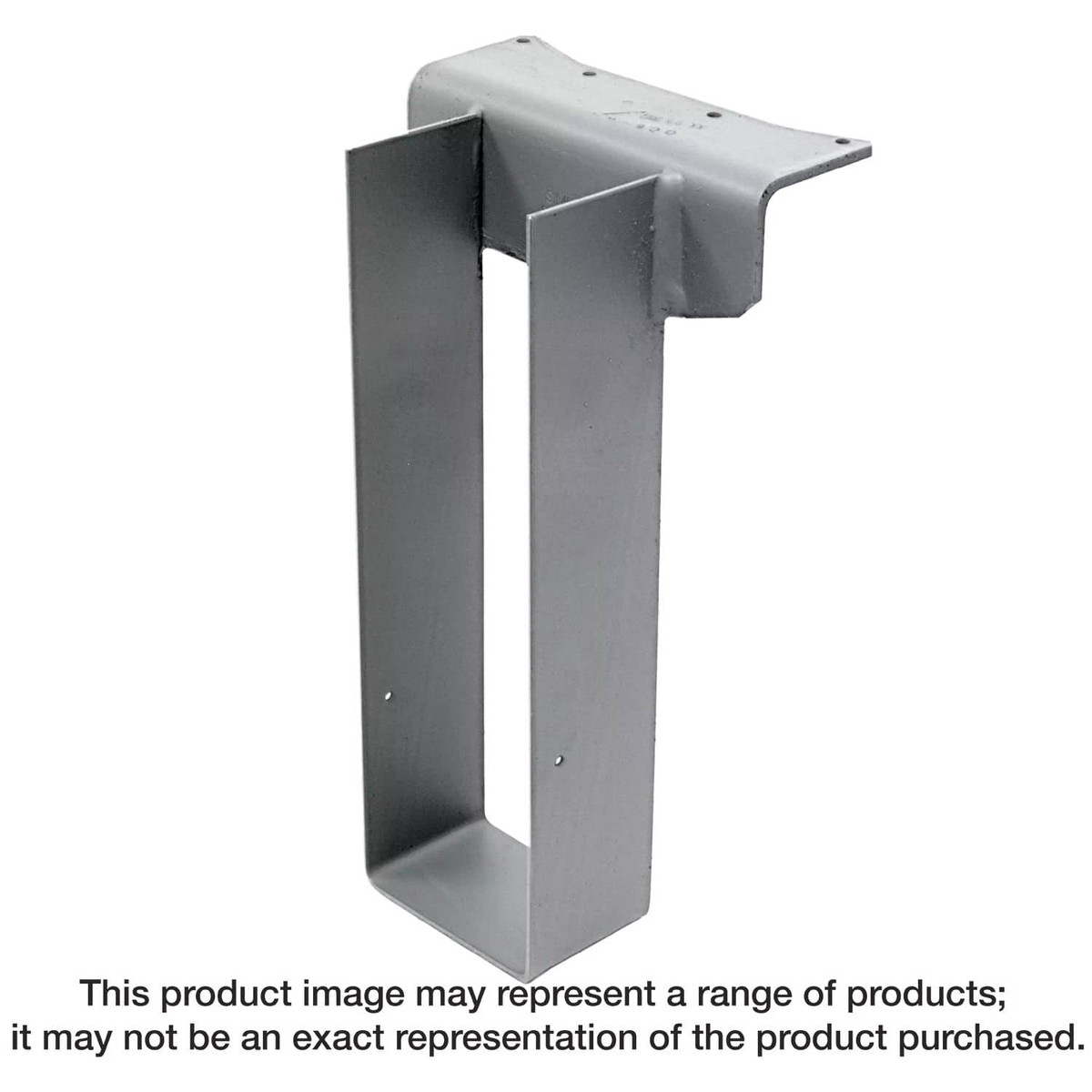

The BA series of top-flange hangers are a cost-effective option for engineered wood and solid sawn lumber applications. They are designed to carry medium loads with solid sawn lumber and higher loads with engineered wood products. They feature min./max. nailing options for design versatility.

• The two-level embossment at the top flange provides increased stiffness
• The full-height joist flange captures the top chord of the joist to prevent rotation and eliminate the need for web stiffeners
• Minimum nailing targets moderate load demands, whereas maximum nailing allows higher loads
• Available for special order to accommodate sloped and/or skewed members
• Actual joist size: 1-1/2 in. x 14 in.
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist
